Описание

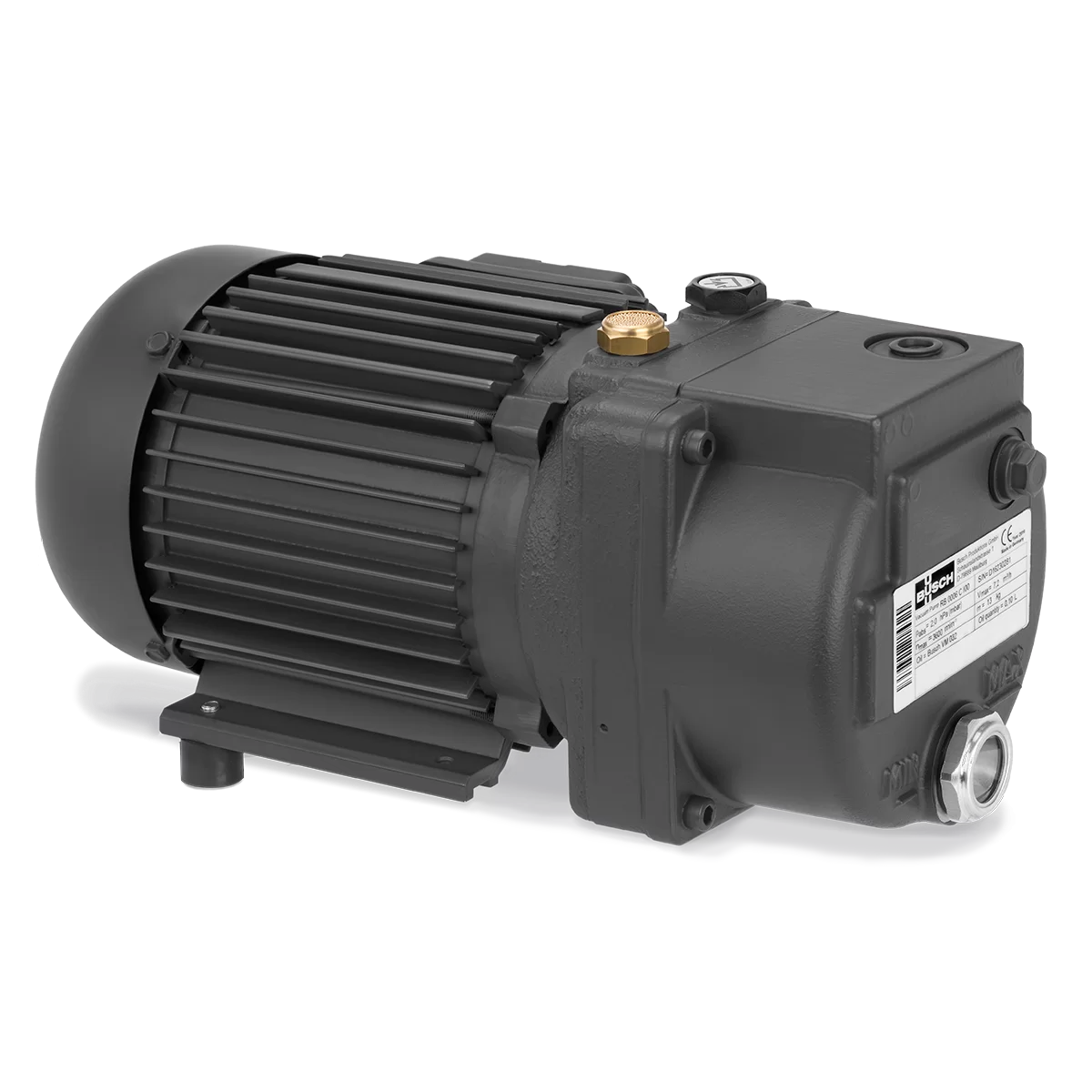

R 5 RB 0006 C/E

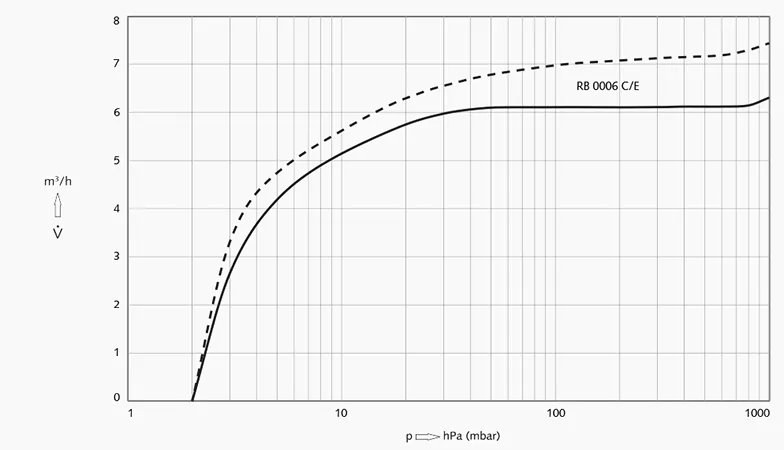

Производительность: Воздух при 20 °C. Погрешность: ± 10% 50 Hz
| Technical data | R5 RB 0006 C | R5 RB 0006 E | ||
|---|---|---|---|---|
| Nominal pumping speed | m3/h | 6 | 6 | |
| Ultimate pressure | hPa (mbar) | 2 | 2 | |
| Nominal motor rating | kW | 0.37 | 0.37 | |
| Nominal motor speed | min-1 | 3000 | 3000 | |
| Noise level (ISO 2151) | dB(A) | 59 | 56 | |
| Oil capacity | l | 0.1 | 0.2 | |
| Weight approx. | kg | 13 | 13 | |

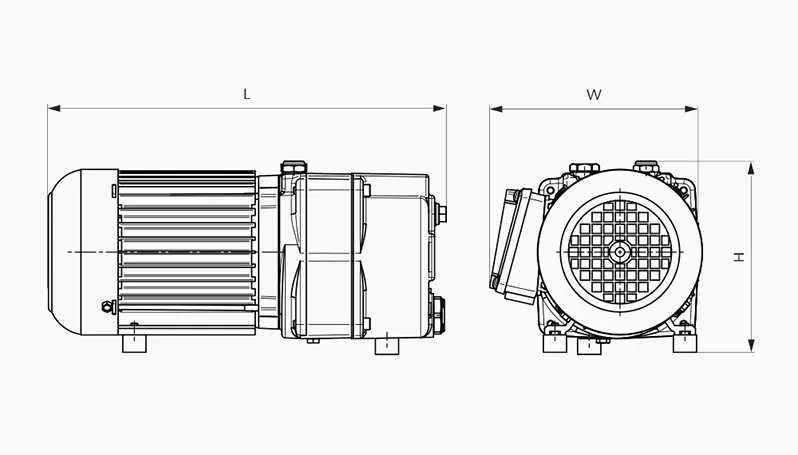

| Dimensions (L x W x H) | mm | 325 x 165 x 165* | 346 x 165 x 165 | |
| Gas inlet | G ¼* | G ¼* |
