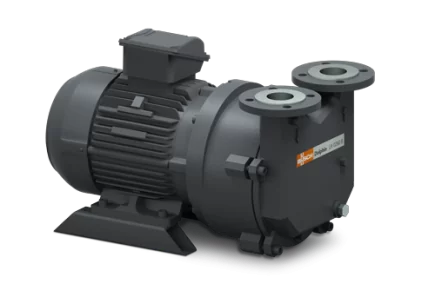

Dolphin LX 0260B/0430B

Описание

Dolphin LX 0260B/0430B

Технические данные Dolphin LX 0260 B Dolphin LX 0330 B Dolphin LX 0430 B
Nominal pumping speed m3/h 50 Hz 200 280 372
Ultimate pressure hPa (mbar) 50 Hz 33 33 33
Nominal motor rating kW 50 Hz 5,5 7,5 11,0
Nominal motor speed min-1 50 Hz 1450 1450 1450
Noise level (ISO 2151) dB(A) 72 72 72
Weight approx. kg 50 Hz 105 132 190

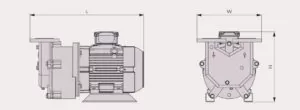

Dimensions (L x W x H) mm 635 x 365 x 402 706 x 365 x 402 818 x 425 x 506
Gas inlet / outlet 50 Hz DN 50 / DN 50 DN 50 / DN 50 DN 65 / DN 65
